Product features
Traction ratio: 2:1
Rated capacity: 400~480、630kg
Rated elevator speed: 0.63、1、1.6、1.75m/s
Max. lifting height: 45m
Max. shaft load: 1800kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening,
and DC100V for brake holding
Number of motor poles: 20 poles

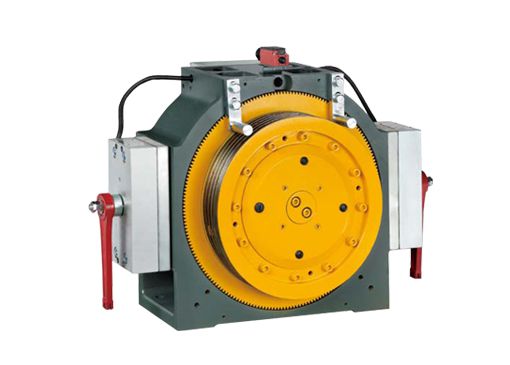

Product Description
Light and small, the traction machine can be mounted on the top, at the bottom or in the wall, can be used in machine-room and
machine-roomless applications, and is provided with brake release and handwinding devices.
Mini series gearless traction machines are applicable to both machine room and machine-roomless applications. This type of traction
machine has low vibration and low noise level, and can match well with various frequency converters.
machine-roomless applications, and is provided with brake release and handwinding devices.
Mini series gearless traction machines are applicable to both machine room and machine-roomless applications. This type of traction
machine has low vibration and low noise level, and can match well with various frequency converters.
This type of traction machine can be used in home elevators and villa elevators.
